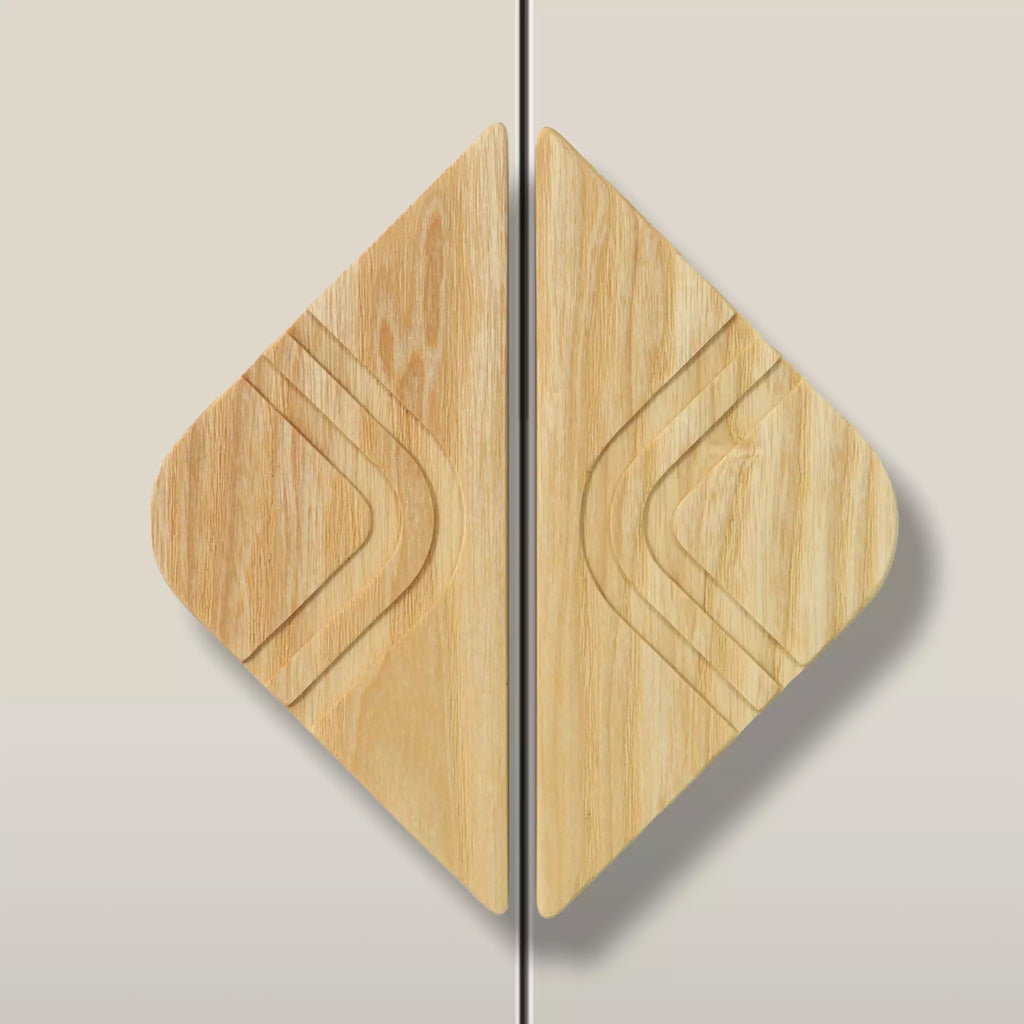

Solid ash arch diamond cabinet pull in the Unfinished finish, fitted across two doors

Arch Diamond Cabinet Pull, Solid Ash — Set of 2

Size 1: 92 mm / 32 mm / Unfinished
£21.00
Skip to product information
Solid ash arch diamond cabinet pull in the Unfinished finish, fitted across two doors
1/5
  • Solid ash arch diamond cabinet pull in the Unfinished finish, fitted across two doors
  • Arch diamond cabinet pull in solid ash on a taupe cabinet, lit from the side to show the carved arches
  • Dimensioned drawings of the four diamond pull sizes: 92, 122, 152 and 192 mm long, with 32, 64, 96 and 128 mm between centres
  • Arch diamond cabinet pull in solid ash fitted across two doors, the arches mirroring each other at the join
  • Half-diamond ash pulls with carved arches, loose on a grey background with the mounting screws
Arch Diamond Cabinet Pull, Solid Ash — Set of 2

Arch Diamond Cabinet Pull, Solid Ash — Set of 2

£21.00

A diamond pull cut in two down the middle, with a pair of rounded arches carved into each half. Sold as a set of two halves in solid ash. Fitted either side of the gap between two doors, the arches face each other across the join and read as one figure opening outwards from the centre.

The two lines turn back on themselves in a wide curve rather than a corner, so the pattern runs against the straight sides of the diamond instead of repeating them. It is the most directional of the six: it gives the handle an obvious middle, and the eye follows the curve towards the split rather than around the outline.

Four sizes, from a 92 mm diamond on a bathroom cabinet to a 192 mm one on a wardrobe, and twelve finishes. The price changes with size only, not with finish.

Same shape, same four sizes, a different face: plain, with no carving, a single grooved outline, two parallel lines, a carved leaf or an interlaced weave.
Product details

A diamond cabinet pull in solid ash with two carved arches on each half, split down the middle. Sold as a set of two, in four sizes and twelve finishes.

In the box: two half-diamond pulls with the threaded metal inserts already fitted, and four M4 × 30 mm screws — two per half.
Dimensions and specifications
  • Wood: solid ash, cut from a single block, no glued joints
  • Size 1: 80 × 92 mm (3.1″ × 3.6″), 32 mm between centres
  • Size 2: 110 × 122 mm (4.3″ × 4.8″), 64 mm between centres
  • Size 3: 140 × 152 mm (5.5″ × 6″), 96 mm between centres
  • Size 4: 180 × 192 mm (7.1″ × 7.6″), 128 mm between centres
  • Total depth from the door: 22 mm (0.9″), all sizes
  • Tolerance: ±1 mm
  • Mounting holes required: 4 mm, two per half
  • Fits door and drawer fronts up to 24 mm thick
  • Included: two half-diamond pulls and four M4 × 30 mm screws, two per half
  • Finish: ADLER Legno Dura-Öl, an oil-based finish — ten colours plus Oiled. Unfinished is bare sanded ash, with no coating at all
  • Sold as a set of two halves; price varies by size only
Mounting

Decide first which way the split will run: vertically, between two side-by-side doors, or horizontally, between two fronts stacked one above the other. The steps are the same either way — the pairs of holes simply run along the split rather than across it.

  1. On each front, mark two points at the centre distance for your size — 32, 64, 96 or 128 mm — running parallel to the split.
  2. Drill a 4 mm hole at each of the four points, through the front.
  3. Pass an M4 × 30 mm screw through each hole from the back and thread it into the insert in the half, tightening by hand with the straight edge along the split.
  4. Finish each screw with a quarter turn of a screwdriver — no more. Overtightening pulls the insert out of the wood.

The two arches mirror each other across the split, so they act as their own check: if the halves sit level, the curves line up at the same height on both sides. Measure both fronts from the same reference edge, close them, and look at the arches before the screws grip. If your front is thinner than 24 mm, the screws will stand proud inside the inserts; that is normal and does not affect how the pull holds.
Materials & workshop

Wood: solid ash, single block per half. Hardware: two threaded metal inserts and two M4 × 30 mm screws per half.

Eleven of the twelve finishes use ADLER Legno Dura-Öl, an Austrian oil-based finish. It leaves a matt, open-pored surface — the colour sits in the wood rather than on top of it, so a green pull still reads as ash and not as painted board — while resisting water and household chemicals the way a varnish would. The oil is certified to EN 71-3 for the migration of heavy metals, and to DIN 53160-1 and 53160-2 for saliva and perspiration resistance. The twelfth option, Unfinished, is bare sanded ash with no coating; it is the palest of the set and darkens with handling.

Cut, shaped, sanded and finished in our own workshop in Roman, Romania. Each arch turns through a wide radius and then runs straight again, and the point where the curve meets the straight is where a cut shows if it is off — so both lines are finished by hand from that turn outwards. The two halves are cut from the same board and stay paired through finishing, so the arches match in colour as well as in position.
Care

Wipe with a dry or barely damp cloth. The oil finish resists water and household cleaners, so no special product is needed and none is recommended.

Dust settles at the bottom of each curve; a dry brush run along the lines clears them. Unfinished pulls have no coating and darken with handling.
